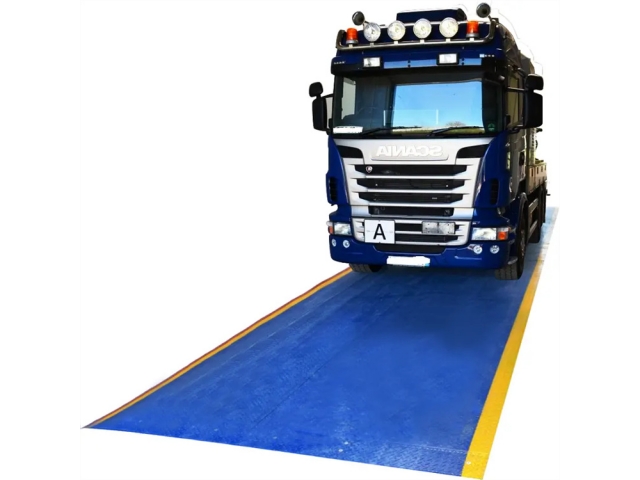

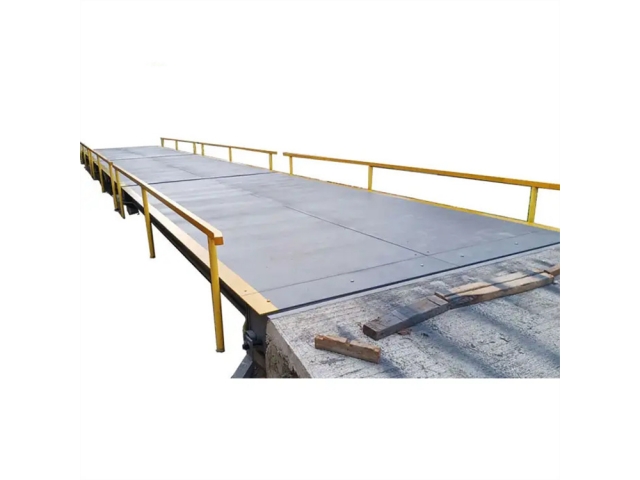

Under Ground Truck Scale

Model :Under Ground

■Max Load: 120t

■Accuracy: 10kg

■Material: Carbon Steel

■Load Cell: Keli/Zemic

■Indicator: Keli/Yaohua

■Junction Box: Keli 8-Pin

■Plate: Plain/Checkered

■Plate Thickness: 10mm

■End Plate: 14mm

■Beam Height: 300mm

■Beam Thickness: 4mm/6mm

■Package: Beams+Plywood Case

■Plywood Case Including: Indicator+Load Cells+Junction Box+Cable+Screws

Model	3*9	3*12	3*15	3*16	3*18	3*20
Capacity	50t	60t	80t	80t	100t	120t
Length	2*4.5m	3*4m	3*5mm	3*5.3m	3*6m	4*5m
Sections	2pcs	3pcs	3pcs	3pcs	3pcs	4pcs
Load Cell	6pcs	8pcs	8pcs	8pcs	10pcs	10pcs
CBM	8.35m³	11.05m³	13.75m³	14.65m³	16.45m³	18.25m³
G.W./N.W.	3.5t/3.4t	4.5t/4.4t	5.6t/5.5t	6t/5.9t	6.8t/6.7t	7.5t/7.4t
